BEDSHE-ZQ Series Specifications

Specifications:

Standard Device	Trimming device
Option Device	Cording device / Boring device
Stitch Length (mm)	0.1-12.7
Power Supply (v)	[1P] AC100-240V / [3P] AC200-415V
Motor Capacity (kW)	0.75
Power Consumption (kW)	1.5
Power (kVA)	2.5

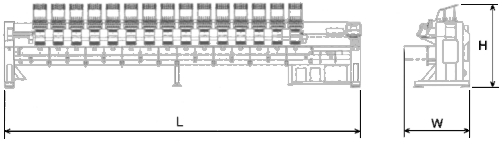

BEDSHE-ZQ Series Machine Information - Dimensions

Model	Needle Spacing	Sewing Field	Continuous Design	No. of Needles	No. of Heads	Weight	L	W	H
BEDSHE-ZQ-B12S	17.7"	17.7"x17.7"/17.7"	17.7"x212.6"	15	12	5500#	289.8"	53.5"	69.3"
(Metric in mm)	450	450x450/450	450x5400			2495kg.	7360	1358	1760
BEDSHE-ZQ-B12S	20.5"	17.7"x20.5"/20.5"	17.7"x245.7"	15	12	5940#	325.2"	53.5"	69.3"
(Metric in mm)	520	450x520/520	450x6240			2695kg.	8260	1358	1760
BEDSHE-ZQ-B15S	15.0"	17.7"x15.0"/15.0"	17.7"x224.4"	15	15	5680#	291.7"	53.5"	69.3"
(Metric in mm)	380	450x380/380	450x5700			2577kg.	7410	1358	1760

Note 1:	The embroidery area indicated above allows for maximum pantograph movement. The actual embroidery field size may be restricted by the frame used.
Note 2:	The sewing speed range is indicated above. Actual sewing speed should be adjusted for your embroidery application, i.e., stitch length, fabric used, etc.
Note 3:	Other Embroidery Area available upon consultation.

Elite XL Embroidery Machine Dimensions

All specifications subject to change without notice.
