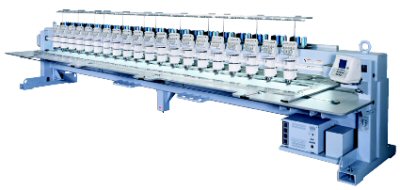

BEDSH-YN Series Specifications

Specifications:

Standard Device	Trimming device
Option Device	Cording device / Boring device
Stitch Length (mm)	0.1-12.7
Power Supply (v)	[1P] AC100-240V / [3P] AC200-415V
Motor Capacity (kW)	0.75
Power Consumption (kW)	1.5
Power (kVA)	2.5

BEDSH-YN Series Machine Information - Dimensions

Model	Needle Spacing	Sewing Field	Continuous Design	No. of Needles	No. of Heads	Weight	L	W	H
BEDSH-YN-B12S	400	17.7"x15.7"/17.7"	17.7"x189.0"	9	12	-- lbs.	247.0"	54.8"	67.0"
(Metric in mm)		450x400/450	450x4800			-- kg.	6275	1393	1702
BEDSH-YN-B12S	400	23.6"x15.7"/17.7"	23.6"x189.0"	9	12	-- lbs.	247.0"	66.7"	67.0"
(Metric in mm)		600x400/450	600x4800			-- kg.	6275	1693	1702
BEDSH-YN-B12S	400	29.5"x15.7"/17.7"	29.5"x189.0"	9	12	-- lbs.	247.0"	78.4"	67.0"
(Metric in mm)		750x400/450	750x4800			-- kg.	6275	1990	1702
BEDSH-YN-B15S	400	23.6"x15.7"/15.7"	23.6"x236.2"	9	15	-- lbs.	290.4"	66.7"	67.0"
(Metric in mm)		600x400/400	600x6000			-- kg.	7375	1693	1702
BEDSH-YN-B15S	400	31.5"x15.7"/15.7"	31.5"x236.2"	9	15	-- lbs.	290.4"	82.4"	67.0"
(Metric in mm)		800x400/400	800x6000			-- kg.	7375	2093	1702
BEDSH-YN-B18S	300	23.6"x11.8"/13.8"	23.6"x212.6"	9	18	-- lbs.	266.4"	66.7"	67.0"
(Metric in mm)		600x300/350	600x5400			-- kg.	6775	1693	1702
BEDSH-YN-B18S	350	23.6"x13.8"/13.8"	23.6"x248.0"	9	18	-- lbs.	300.2"	66.7"	67.0"
(Metric in mm)		600x350/350	600x6300			-- kg.	7625	1693	1702
BEDSH-YN-B18S	350	29.5"x13.8"/15.7"	29.5"x248.0"	9	18	-- lbs.	304.2"	78.5"	67.0"
(Metric in mm)		750x350/400	750x6300			-- kg.	7725	1993	1702
BEDSH-YN-B18S	400	31.5"x15.7"/15.7"	31.5"x283.5"	9	18	-- lbs.	337.6"	82.4"	67.0"
(Metric in mm)		800x400/400	800x7200			-- kg.	8575	2093	1702
BEDSH-YN-B20S	300	23.6"x11.8"/19.7"	23.6"x236.2"	9	20	-- lbs.	298.2"	66.7"	67.0"
(Metric in mm)		600x300/500	600x6000			-- kg.	7575	1693	1702
BEDSH-YN-B20S	300	29.5"x11.8"/19.7"	29.5"x236.2"	9	20	-- lbs.	298.2"	78.4"	67.0"
(Metric in mm)		750x300/500	750x6000			-- kg.	7575	1990	1702
BEDSH-YN-B20S	300	39.4"x11.8"/19.7"	39.4"x236.2"	9	20	-- lbs.	298.2"	82.4"	67.0"
(Metric in mm)		1000x300/500	1000x6000			-- kg.	7575	2493	1702
BEDSH-YN-B30S	240	23.6"x9.4"/13.8"	23.6"x283.5"	9	30	-- lbs.	340.0"	66.7"	67.0"
(Metric in mm)		600x240/350	600x7200			-- kg.	8635	1693	1702

Specifications for BEDSH-YN-B30S only
Motor Capacity (kW) - 1.5
Power Consumption (kW) - 1.7
Power (kVA) - 2.7

The embroidery area indicated above allows for maximum pantograph movement. The actual embroidery field size may be restricted by the frame.

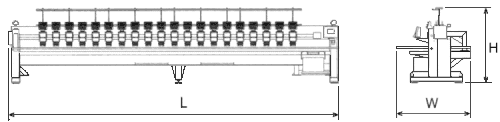

BEDSH YN Series dimensions

All specifications subject to change without notice.
