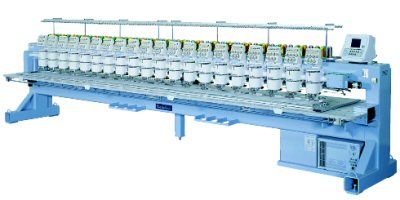

| BEDSH-YS-M20
Series |
High Performabce
Compact Machine...
Floor space is valuable in any production environment.
Knowing this, Barudan now offers its new M20 Series machine.
The industry's first compact frame multi-head machine,
Barudan's M20 Series requires less space for installation
but offers the same high-speed, high-production results
as our much larger machines. Featuring
Barudan's proven production-enhancing rotary sewing
head, the M20 Series machine is excellent for stitching
all types of flat goods.
|
|
| Standard
Features |
 |
|
- Large 320 x 240/240 sewing field.
- Huge 320 x 4800 continuous sewing
field.
- 7 needles.
- Industrial-strength construction.
- AC Servo motor pantograph.
- Super quiet operation.
- User-friendly, icon-based machine
operation; standard throughout the entire
Barudan line.
- Under head light.
- Thread clamps hold threads in place
to prevent pull outs.
- Automatic color change.
- Automatic thread trimmers.
- Built-in 3.5'' disk drive.
- 348,000 stitch capacity in 10 patterns.
Expandable up to 10 million stitches.
- Automatic speed control ensures optimum
stitch quality.
- 1,600 stitch automend and stitch backup.
- Ability to update software from disk.
- Backup disk of all patterns stored
in memory can easily be created or restored
with one simple command.
|
- Function List allows you to quickly
and easily change color sequence in
one screen.
- Internal battery backup and origin
reference allow you to restart quickly
and accurately even after a power failure.
- Reads and stores most popular embroidery
machine formats.
- Automatic return to origin.
- Automatic thread break detector.
- Program jog movements.
- Variable sewing speed from 200 to
1000 stitches per minute. Can be adjusted
to suit each individual application.
- Perimeter trace allows you to trace
the outline of a design to ensure proper
placement of design.
- Digitally float to any stitch in a
design.
- Visual pattern preview.
- Matrix - Repeats single pattern up
to 400 times horizontally & vertically.
|
|
|
| All
specifications subject to change without notice. |
|
|
|
