BEDSH-Z12/ZQ Series Specifications

BEDSH-Z12-ZQ

Specifications:
Standard Device Trimming device
Option Device Cording device / Boring device
Stitch Length (mm) 0.1-12.7
Power Supply (v) [1P] AC100-240V /
[3P] AC200-415V
Motor Capacity (kW) 0.75
Power Consumption (kW) 1.5
Power (kVA) 2.5



BEDSH-Z12/ZQ Series Machine Information - Dimensions
Model Needle
Spacing
Sewing
Field
Continuous
Design
No. of
Needles
No. of
Heads
Weight L W H
BEDSH-ZQ-B12S 520 17.7"x20.5"/20.5" 17.7"x245.7" 15 12 -- lbs. 304.5" 55.9" 67.1"
(Metric in mm)   450x520/520 450x6240     -- kg. 7735 1419 1705
BEDSH-ZQ-B12S 400 23.6"x15.7"/17.7" 23.6"x189.0" 15 12 -- lbs. 247.0" 66.7" 67.1"
(Metric in mm)   600x400/450 600x4800     -- kg. 6275 1693 1705
BEDSH-ZQ-B15S 350 17.7"x13.8"/15.7" 17.7"x206.7" 15 15 -- lbs. 262.8" 55.9" 67.1"
(Metric in mm)   450x350/400 450x5250     -- kg. 6675 1419 1705
BEDSH-ZQ-B15S 400 23.6"x15.7"/15.7" 23.6"x236.2" 15 15 -- lbs. 290.4" 66.7" 67.1"
(Metric in mm)   600x400/400 600x6000     -- kg. 7375 1693 1705
BEDSH-ZQ-B18S 350 17.7"x13.8"/13.8" 17.7"x248.0" 15 18 -- lbs. 302.2" 55.9" 67.1"
(Metric in mm)   450x350/350 450x6300     -- kg. 7675 1419 1705
BEDSH-ZQ-B18S 350 23.6"x17.7"/17.7" 23.6"x248.0" 15 18 -- lbs. 302.2" 66.7" 67.1"
(Metric in mm)   600x450/450 600x6300     -- kg. 7675 1693 1705
BEDSH-ZQ-B20S 350 17.7"x13.8"/13.8" 17.7"x275.6" 15 20 -- lbs. 329.7" 55.9" 67.1"
(Metric in mm)   450x350/350 450x7000     -- kg. 8375 1419 1705
BEDSH-ZQ-B20S 350 23.6"x13.8"/13.8" 23.6"x275.6" 15 20 -- lbs. 329.7" 66.7" 67.1"
(Metric in mm)   600x350/350 600x7000     -- kg. 8375 1693 1705
BEDSH-ZQ-B20S 350 39.4"x13.8"/13.8" 39.4"x275.6" 15 20 -- lbs. 329.7" 98.1" 67.1"
(Metric in mm)   1000x350/350 1000x7000     -- kg. 8375 2492 1705
BEDSH-Z12-B12S 400 23.6"x15.7"/17.7" 23.6"x189.0" 12 12 -- lbs. 247.0" 66.9" 67.0"
(Metric in mm)   600x400/450 600x4800     -- kg. 6275 1700 1703
BEDSH-Z12-B15S 400 23.6"x15.7"/15.7" 23.6"x236.2" 12 15 -- lbs. 290.4" 66.9" 67.0"
(Metric in mm)   600x400/400 600x6000     -- kg. 7375 1700 1703
BEDSH-Z12-B18S 300 23.6"x11.8"/13.8" 23.6"x515.7" 12 18 -- lbs. 266.7" 66.9" 67.0"
(Metric in mm)   600x300/350 600x5400     -- kg. 6775 1700 1703
BEDSH-Z12-B18S 350 23.6"x13.8"/13.8" 236.2"x248.0" 12 18 -- lbs. 300.2" 66.9" 67.0"
(Metric in mm)   600x350/350 6000x6300     -- kg. 7625 1700 1703
BEDSH-Z12-B20S 300 23.6"x11.8"/19.7" 23.6"x236.2" 12 20 -- lbs. 298.2" 66.9" 67.0"
(Metric in mm)   600x300/500 600x6000     -- kg. 7575 1700 1703
BEDSH-Z12-B20S 350 23.6"x13.8"/13.8" 23.6"x275.6" 12 20 -- lbs. 327.8" 66.9" 67.0"
(Metric in mm)   600x350/350 600x7000     -- kg. 8325 1700 1703
BEDSH-Z12-B20S 300 39.4"x11.8"/19.7" 39.4"x236.2" 12 20 -- lbs. 298.2" 98.3" 67.0"
(Metric in mm)   1000x300/500 1000x6000     -- kg. 7575 2496 1703

  * The embroidery area indicated above allows for maximum pantograph movement.
The actual embroidery field size may be restricted by the frame.

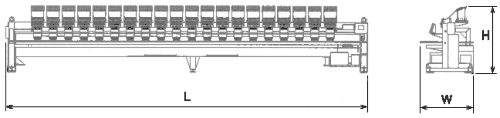

BEDSH Z12 ZQ Series dimensions



All specifications subject to change without notice.
