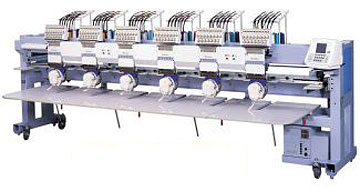

BEDYHE-ZQ Series
Small Size, Big Copabilities...
Barudan introduces our new BEDYHE-ZQ Series machines. Offering the same heavy-duty, steel construction of our full-size models, these machines are small enough to fit through a standard door. Set up shop almost anywhere. Super large sewing field. Provides excellent stability and less movement, which translates into improved sewing quality.

Available in 2, 4, 6 and 8-Head Model



Standard Features
  • Large 450 x 520 sewing field (450 x 380 sewing field on 8-head model).
  • Huge 450 x 3120 continuous sewing field.
  • Machine sized to fit through most standard doorways.
  • 15 needles.
  • Network capabilities.
  • Radius cylinder arm designed for high-quality cap embroidery.
  • Industrial-strength construction.
  • Super quiet operation.
  • Quick and easy air-feed threading system.
  • User-friendly, icon-based machine operation; standard throughout the entire Barudan line.
  • Under head light (4, 6, and 8-head models only).
  • Thread clamps hold threads in place to prevent pull outs.
  • Automatic color change.
  • Automatic thread trimmers.
  • Built-in 3.5" disk drive.
  • 348,000 stitch/10 pattern memory capacity.
  • CF Card (CompactFlash Card) memory expands total capacity to over 10 million stitches.
  • Reads and stores most popular embroidery machine formats.
  • Automatic return to origin.
  • Digitally float to any stitch in a design.
  • Automatic thread break detector.
  • Adjustable table allows quick and easy conversion between finished caps, tubular and flat goods.
  • Program jog movements.
  • Variable sewing speed from 200 to 1,000 stitches per minute. Can be adjusted to suit each individual application.
  • Perimeter trace allows you to trace the outline of a design to ensure proper placement of design.
  • Visual pattern preview.
  • Automatic speed control ensures optimum stitch quality.
  • 1,600 stitch automend and stitch backup.
  • Ability to update software from disk.
  • Backup disk of all patterns stored in memory can easily be created or restored with one simple command.
  • Function List allows you to quickly and easily change color sequence in one screen.
  • Internal battery backup and origin reference allow you to restart quickly and accurately even after a power failure.

Standard Accessories
BEDYHE-ZQ-C02
  • 4 - 12cm Blue Round Frame
  • 4 - 15cm Blue Round Frame
  • 4 - 300mm x 290mm Oblong Frame
  • 4 - 300mm x 430mm Blue Oblong Frame
  • 4 - 460mm x 434mm Blue Oblong Frame
  • "Advantage EX" Cap Frame System - consists of 2 quick-install drive units, framing device and 4 cap frames
  • 1 - 32MB CompactFlash card
  • CF Write software, which transfers embroidery patterns from your PC to your CompactFlash card
  • Tool Box with Basic Tools, Supplies and Lubricants
  • Machine Manual
  • Parts Book
BEDYHE-ZQ-C04
  • 8 - 12cm Blue Round Frame
  • 8 - 15cm Blue Round Frame
  • 8 - 300mm x 290mm Oblong Frame
  • 8 - 330mm x 438mm Blue Oblong Frame
  • 8 - 460mm x 434mm Blue Oblong Frame
  • "Advantage EX" Cap Frame System - consists of 4 quick-install drive units, framing device and 8 cap frames
  • 1 - 32MB CompactFlash card
  • CF Write software, which transfers embroidery patterns from your PC to your CompactFlash card
  • Tool Box with Basic Tools, Supplies and Lubricants
  • Machine Manual
  • Parts Book
BEDYHE-ZQ-C06
  • 12 - 12cm Blue Round Frame
  • 12 - 15cm Blue Round Frame
  • 12 - 300mm x 290mm Oblong Frame
  • 12 - 330mm x 438mm Blue Oblong Frame
  • "Advantage EX" Cap Frame System - consists of 6 quick-install drive units, framing device and 12 cap frames
  • 1 - 32MB CompactFlash card
  • CF Write software, which transfers embroidery patterns from your PC to your CompactFlash card
  • Tool Box with Basic Tools, Supplies and Lubricants
  • Machine Manual
  • Parts Book
BEDYHE-ZQ-C08
  • 16 - 12cm Blue Round Frame
  • 16 - 15cm Blue Round Frame
  • 16 - 300mm x 290mm Oblong Frame
  • 16 - 460mm x 304mm Blue Oblong Frame
  • "Advantage EX" Cap Frame System - consists of 8 quick-install drive units, framing device and 16 cap frames
  • 1 - 32MB CompactFlash card
  • CF Write software, which transfers embroidery patterns from your PC to your CompactFlash card
  • Tool Box with Basic Tools, Supplies and Lubricants
  • Machine Manual
  • Parts Book

Recommended Accessories
NB1050 Supply Kit - A selection of backings, bobbins, needles, adhesives & tools and more.
NB1001 Thread Kit (15 cones) Order one kit per sewing head
NB1002 Extra Hoop Set (520) field) 2 ea. 9cm, 18cm, 300x290mm hoops
NB2005 NBV 2005 Welcome Package w/*Unlimited NBV training and support plus NBV Deluxe Welcome Kit with 5,000+ designs, product catalogs and samples, embroidery group memberships and more.
NB9004 Balboa Threadworks Blue Book Library (with machine purchase only)
A100591 CompactFlash Reader/Writer (USB)
B98600005 HoopMaster Kit (2-Size & Jacket Kit 12cm & 15cm & 290x300)
B98600006 HoopMaster Kit (3-Size & Jacket Kit 12cm, 15cm, 18cm & 290x300)
B98500300 Quick Change 7 in 1 Frames (520 Field - 2, 4, and 6-head)
ICTCS Tubular Clamping System w/3 windows + arms For 520
ZFR9109A520A 9cm Hoop (520 Field - 2, 4, and 6-head)
ZFR9118A520A 18cm Hoop (520 Field - 2, 4, and 6-head)
ZFR92300290A52A 290x300 Hoop (520 Field - 2, 4, and 6-head)
ZFR92460434A52S 460x434mm Hoops (520) HE-C Only
EFP008186 Pocket Frame Assembly
EFP008187 Bucket Cap Adapter
EFP008188 Pocket Framing Device
EFP000406 Spectacle System NT (QS)
EFP000407 9cm Spectacle Hoop w/clips (QS/520 - 2, 4, and 6-head)
EFP000408 12cm Spectacle Hoop w/clips (QS/520 - 2, 4, and 6-head)
EFP000409 15cm Spectacle Hoop w/clips (QS/520 - 2, 4, and 6-head)
EFP000415 Spectacle System Bridge (QS)
On-Site Installation/Machine Training for 2hd-30hd machines
BSSC100006 Barudan's TES Modifier I (Includes Stitch Processing)
BSSC100007 Barudan's TES Modifier II (Includes Stitch Processing and Stitches to Blocks)
BSSC200010 Barudan's TES Creator (Includes Realistic Embroidery Simulator)
BSSC200011 Barudan's TES Creator Advanced
BSSC200013 Barudan's TES Creator Professional
BSSC200002 PhotoStitch (standard on Advanced & Pro)
BSSC200005 AutoPunch (standard on Pro)
BSSS100003 Full Lettering Option for Modifier I or II
BSSS100004 Full Lettering Option for Creator
ZN30140 Serial Cable

All specifications subject to change without notice.
