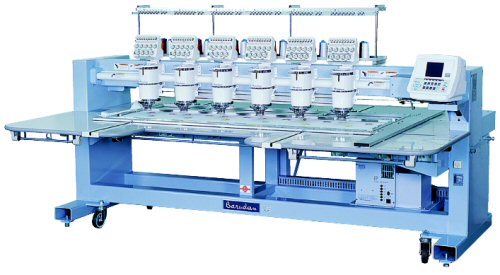

 BEDYH-YN
Series Specifications |
| Specifications:
|
 |
|
| Standard Device |
Trimming device |
| Option Device |
Cording device / Boring device |
| Stitch Length (mm) |
0.1-12.7 |
| Power Supply (v) |
[1P] AC100-240V /
[3P] AC200-415V |
| Motor Capacity (kW) |
0.55 |
| Power Consumption (kW) |
0.8 |
| Power (kVA) |
1.2 |
|
|
| BEDYH-YN
Series Machine Information - Dimensions |
 |
|
Model |
Needle
Spacing |
Sewing
Field |
Continuous
Design |
No. of
Needles |
No. of
Heads |
L |
W |
H |
| BEDYH-YN-4 |
11.8" |
17.7"x 11.8" |
17.7"x47.2" |
9 |
4 |
6' 11" |
4' 7" |
5' 6" |
| (Metric in mm) |
300 |
450x300/300 |
450x1200 |
|
|
2,110 |
1,390 |
1,680 |
| BEDYH-YN-4 |
11.8" |
23.6"x 11.8" |
23.6"x47.2" |
9 |
4 |
6' 11" |
5' 7" |
5' 6" |
| (Metric in mm) |
300 |
600x300/300 |
600x1200 |
|
|
2,110 |
1,700 |
1,680 |
| BEDYH-YN-4 |
15.7" |
23.6"x 15.7" |
23.6"x63.0" |
9 |
4 |
10' 2" |
4' 1" |
5' 6" |
| (Metric in mm) |
400 |
600x400/400 |
600x1600 |
|
|
3,085 |
1,244 |
1,680 |
| BEDYH-YN-4 |
15.7" |
29.5"x 11.8" |
29.5"x47.2" |
9 |
4 |
10' 2" |
4' 1" |
5' 6" |
| (Metric in mm) |
300 |
750x300/300 |
750x1200 |
|
|
2,110 |
2,015 |
1,680 |
| BEDYH-YN-6 |
11.8" |
17.7"x 11.8" |
17.7"x70.8" |
9 |
4 |
8' 11" |
4' 7" |
5' 6" |
| (Metric in mm) |
300 |
450x300/300 |
450x1800 |
|
|
2,710 |
1,400 |
1,680 |
| BEDYH-YN-6 |
11.8" |
23.6"x 11.8" |
23.6"x70.8" |
9 |
4 |
8' 11" |
5' 7" |
5' 6" |
| (Metric in mm) |
300 |
600x300/300 |
600x1800 |
|
|
2,710 |
1,700 |
1,680 |
| BEDYH-YN-6 |
15.7" |
23.6"x 15.7" |
23.6"x94.5" |
9 |
4 |
11' 2" |
5' 7" |
5' 6" |
| (Metric in mm) |
400 |
600x400/400 |
600x2400 |
|
|
3,410 |
1,700 |
1,680 |
| BEDYH-YN-6 |
15.7" |
29.5"x 11.8" |
29.5"x70.8" |
9 |
4 |
8' 11" |
6' 7" |
5' 6" |
| (Metric in mm) |
300 |
750x300/300 |
750x1800 |
|
|
2,710 |
2,015 |
1,680 |
| BEDYH-YN-6 |
11.8" |
29.5"x 11.8" |
29.5"x70.8" |
9 |
6 |
9' 11" |
6' 7" |
5' 6" |
| (Metric in mm) |
300 |
750x300/500 |
750x1800 |
|
|
3,010 |
2,015 |
1,680 |
| BEDYH-YN-8 |
15" |
17.7"x 15" |
17.7"x119.7" |
15 |
8 |
10' 10" |
4' 7" |
5' 6" |
| (Metric in mm) |
380 |
450x380/380 |
450x3040 |
|
|
3,310 |
1,400 |
1,680 |
|
| All
specifications subject to change without notice. |
|
|
