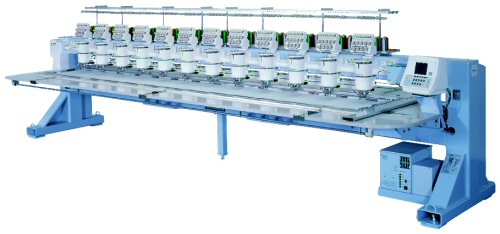

 BEDYH-YN/Z12-C12
Series Specifications |
| Specifications:
|
 |
|
| Standard Device |
Trimming device |
| Option Device |
Cording device / Boring device |
| Stitch Length (mm) |
0.1-12.7 |
| Power Supply (v) |
[1P] AC100-240V /
[3P] AC200-415V |
| Motor Capacity (kW) |
0.55 |
| Power Consumption (kW) |
1.2 |
| Power (kVA) |
2.0 |
|
|

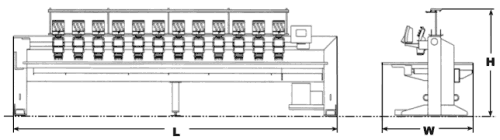

| BEDYH-YN
Series Machine Information - Dimensions |
 |
|
| Model |
Needle
Spacing |
Sewing
Field |
Continuous
Design |
No. of
Needles |
No. of
Heads |
Weight |
L |
W |
H |
| BEDYH-YN-C12 |
11.8" |
17.7"x11.8"/13.8" |
17.7"x141.7" |
9 |
12 |
3935# |
190.9" |
53.4" |
61.9" |
| (Metric in mm) |
300 |
450x300/350 |
450x3600 |
|
|
1785 kg. |
4850 |
1357 |
1573 |
| BEDYH-YN-C12 |
13.8" |
23.6"x13.8"/13.8" |
23.6"x165.4" |
9 |
12 |
3935# |
212.6" |
65.2" |
61.9" |
| (Metric in mm) |
350 |
600x350/350 |
600x4200 |
|
|
1785 kg. |
5400 |
1657 |
1573 |
| BEDYH-Z12-C12 |
11.8" |
17.7"x11.8"/13.8" |
17.7"x141.7" |
12 |
12 |
3935# |
190.9" |
53.4" |
62.6" |
| (Metric in mm) |
300 |
450x300/350 |
450x3600 |
|
|
1785 kg. |
4850 |
1357 |
1591 |
| BEDYH-Z12-C12 |
13.8" |
23.6"x13.8"/13.8" |
23.6"x165.4" |
12 |
12 |
3935# |
212.6" |
65.2" |
62.6" |
| (Metric in mm) |
350 |
600x350/350 |
600x4200 |
|
|
1785 kg. |
5400 |
1657 |
1591 |
|
| All
specifications subject to change without notice. |
|
|
